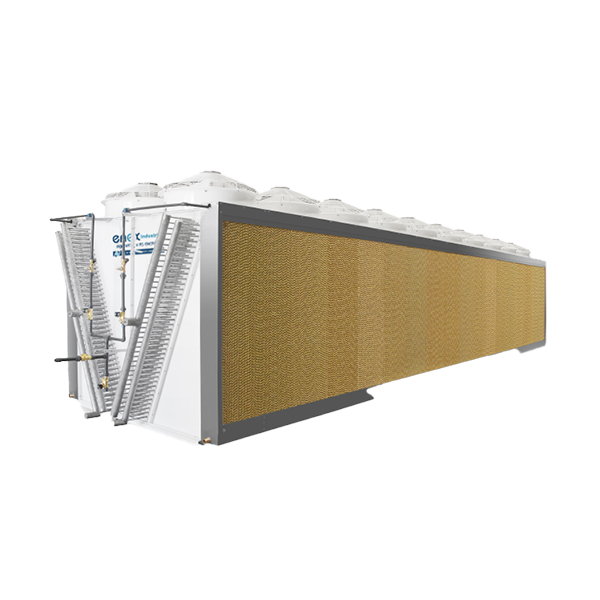

V-shaped Adiabatic Air Condensers (StSt/Al, Cu/Al)

The V-shaped adiabatic air condenser is manufactured with stainless steel tubes and aluminium fins (StSt/Al). It was specially designed for NH₃ condensation. It can be produced in Cu/Al for all other refrigerants. Modular design from 2 to 22 axial fans (ø910, 1000). Fin pitch: 2.1-2.3 mm.

Designed for NH₃ condensation, CAV condensers can also operate with a wide range of refrigerants. Our robust CAV air condensers are made of thick galvanized metal sheet painted in polyester to protect the equipment from environmental corrosion.

Circuit design and tube diameters are optimized for minimum pressure drop, even in the highest capacity models. This is a range of standard condensers with a high degree of flexibility for application in customized solutions.


  • Tube material. Stainless steel AISI 304 (AISI 316 on request) or copper
  • Aluminium fins. Optionally, it can be made of magnesium aluminium or aluminium with epoxy protection
  • Stainless steel screws
  • ErP Ready axial fans with IP54 or IP55 motors, depending on the model; motor protection with thermocontacts
  • Independent fans in pairs to avoid air bypass in case of shutdown or failure
  • The units are delivered pressurized and with Schrader + valves


  • Adiabatic pre-cooling panel system and system control panel
  • High performance adiabatic spraying system
  • Electronically commutated EC axial fans
  • Fans connected to external watertight box
  • Pre-lacquered aluminium fins with epoxy or magnesium aluminium protection
  • Stainless steel casing
  • Proximity switches for fans
  • Circuits for subcooling
  • Folding fans for inspection and cleaning of the finned package
  • Special electric voltage; fans at 60hz
